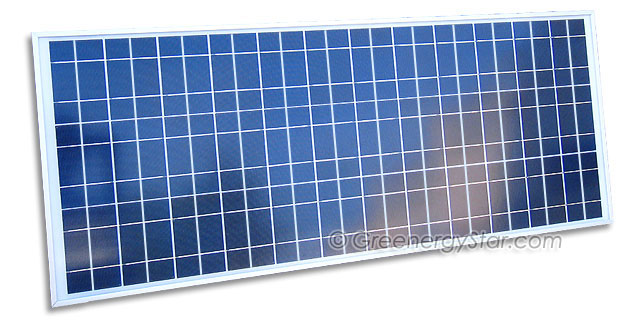

100W Polycrystalline Solar Power Panel
| |
Our Price: US$398.00 |
|
| |
| |
Free shipping to USA 48 States & Canada |
|
| |
Product Code: 100w_125.5x51x3.5cm |
|
| |
|
|
| |
  |
|
| |
|
|
|
Solar Panel Specification:
| |
Output |
100W |
| |
Type |
Polycrystalline |
| |
Voc |
21.3V |
| |
Vop |
18.0V |
| |
Short Circuit Current (Isc) |
5.899A |
| |
Working Currrent (Iop) |
5.555A |
| |
Output Tolerance |
±3% (97.0W - 103.0W) |
| |
Operating Temperature |
-40'C to 85'C |
| |
Temperature coefficient of Isc |
0.065 ±0.015 %/'C |
| |
Temperature coefficient of Voc |
-160 ±10 mV/'C |
| |
Temperature coefficient of power |
0.5 ±0.05 %/'C |
| |
Frame |
Aluminum Alloy |
| |
Efficiency |
13.3% |
| |
Connection |
Quick Connectors +
Alligator clips |
| |
Cable |
Installed to box
(about 0.8m) |
| |
Number of Cells |
72 cells |
| |
Size of cells |
156 x 95mm |
| |
Glass |
Tempered Glass |
| |
Battery Voltage |
12V |
| |
Dimension |
125.5x 51 x 3.5 cm
49.41 x 20.08 x 1.38 inches |
| |
Weight |
7.8kg, 17.2lbs |
|

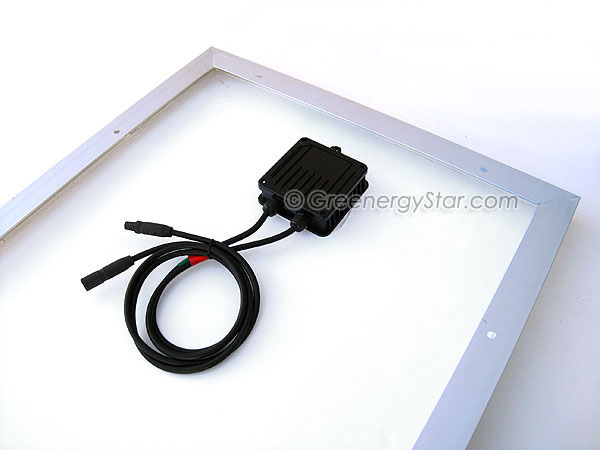

Back of Panel with Box and 1m cable
Solar panel generates free energy for many general household appliance. These solar panels also specially designed for use in sailing boats, green houses, cars, radios, recreational vehicles, portable televisions, warning lights, flash lights, garden lights, house light, garage lights and ventilators for rooms and cars. They can also be installed into a grid-tie system.
- 72 pieces silicon solar cells
- Enclosed with epoxy and high-quality resin material
- Rain proof, rust proof and corrosive proof, protects against wind, rain, salt air and solar radiation.
- Weather resistant, charge batteries in dry/wet condition
Comparison Chart:
|
|
Polycrystalline Silicon Panels |
Amorphous Silicon |
| |
|
|
|
|
|
| |
Pros |
Cons |
|
Pros |
Cons |
| |
Efficiency can be compensated by better utilization of the area available for modules. |
12-14% efficiency
(Medium) |
|
Most economical |
6 - 8% efficiency
(Low) |
| |
Most Cost effective |
|
|
Thin Film |
Panel size is huge because of low efficiency |
| |
Small Panel Size |
|
|
|
Heavy weighted (Hard to install) |
| |
Light Weighted (Easy to install) |
|
|
|
|
| |
Rectangular shaped cells |
|
|
|
|
| |
|
|
|
|
|
|
NO OPERATING COST
GENERATES ELECTRICITY FROM THE ABUNDANT RESOURCE
|
|
|
|
