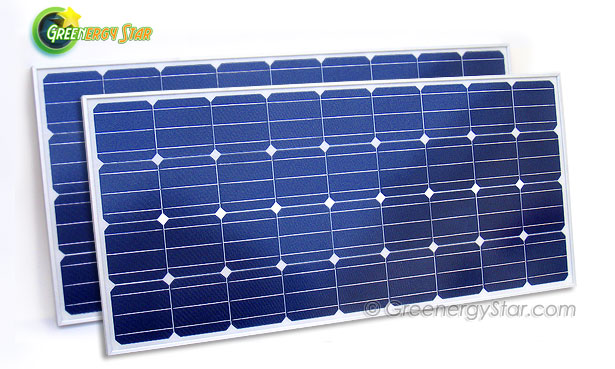

Two 160W Monocrystalline Solar Power Panel

	Our Price: US$1120.00
	Our Price: US$1120.00
	Free shipping to USA 48 States & Canada
	Product Code: 160w_147x68x5cm_x2

Solar Panel Specification:

	Output	160W
	Type	Monocrystalline
	Open Circuit Voltage (Voc)	21.5V
	Maximum Power Voltage (Vmp)	18.4V
	Short Circuit Current (Isc)	9.55A
	Maximum Power Currrent (Imp)	8.7A
	Output Tolerance	±5% (152.0W - 168.0W)
	Operating Temperature	-40'C to 80'C
	Frame	Aluminum Alloy
	Efficiency	18.61%
	Connection	MC2
	Cable	Install to box (80cm)
	Number of Cells	36 cells
	Glass	Tempered Glass
	Battery Voltage	12V
	Dimension	147.0 x 68.0 x 5.0cm 47.4 x 21.7 x 1.4 inches
	Weight	12.5kg, 27.56lbs

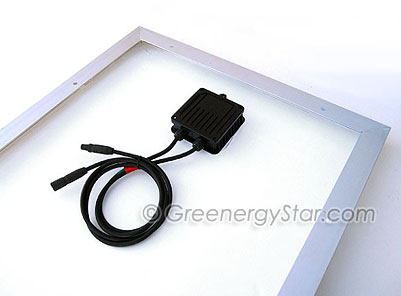

Back of Panel with Box and cable

Solar panel generates free energy for many general household appliance. These solar panels also specially designed for use in sailing boats, green houses, cars, radios, recreational vehicles, portable televisions, warning lights, flash lights, garden lights, house light, garage lights and ventilators for rooms and cars. They can also be installed into a grid-tie system.

- 36 pieces silicon solar cells
- Enclosed with epoxy and high-quality resin material
- Rain proof, rust proof and corrosive proof, protects against wind, rain, salt air and solar radiation.
- Weather resistant, charge batteries in dry/wet condition

Comparison Chart:


Monocrystalline Silicon Panels

	Pros	Cons
	15-18% (high) efficiency	More Expensive
	Small Panel Size	Non Rectangular shaped cells
	Light Weighted (Easy to install)


Polycrystalline Silicon Panels			Amorphous Silicon

	Pros	Cons		Pros	Cons
	Efficiency can be compensated by better utilization of the area available for modules.	12-14% efficiency (Medium)		Most economical	6 - 8% efficiency (Low)
	Most Cost effective			Thin Film	Panel size is huge because of low efficiency
	Small Panel Size				Heavy weighted (Hard to install)
	Light Weighted (Easy to install)
	Rectangular shaped cells

NO OPERATING COST
GENERATES ELECTRICITY FROM THE ABUNDANT RESOURCE
