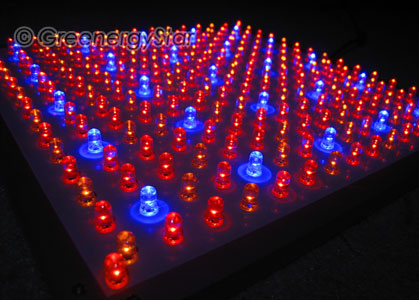

16W 229pcs Blue+Red+Orange LED Grow Light Panel + 100V-240V 50-60Hz AC Adaptor

Front



Back



Rigid Aluminum Frame construction for better heat dissipation 4 built-in hooks for easy mounting Better space utilization Light weight (450g) Low Voltage eliminates electric shock / fire hazard Perfect for green houses

Wavelength (Tri-Band): Red: 660nm Orange: 612nm Blue: 470nm LEDs are rated at 10000mcd Ratio: 11 Red , 5 Orange and 2 Blue Total LED: 229 pcs Tri-band (139 Red, 65 Orange and 25 Blue) 100,000 hours of life 12 years of continuous operation Energy consumption is 5-10% of a typical light bulb (depending on wavelength) Red light stimulate flowering and seed production Orange light stimulate growth of carotenoids to make plants stay healthy Blue light stimulate stem and leaf growth Minimum HEAT ( Energy Efficient )

Adaptor Specification:

Adaptor Retail Value: US$19.00

Why? Why do we need a UL Listed AC adaptor?
Unlike other panels in the market, we have seperated the AC power input from the panel and utilize a UL Listed AC adaptor to supply 12V DC power to the panel. By configing our panels to use low voltage, we have eliminated possible electric shock and fire hazards and thus give you a peace of mind.

Input Voltage (AC) 110 - 240V ~50/60Hz 0.35A   Output Voltage (DC) 12V DC 1.5A   Plug Size 2.1mm   Certification cUL, CE   Cable Length 150cm, 59inches

Panel Specification:

LED 229 pieces   Power 16W : approximately equal to the red, orange, blue ray of a 200W incandescent light   Input 12V DC with 2.1mm plug   Size 24.3cm X 24.3 cm X 1.9 cm or 9.5 X 9.5 X 0.75 inches   Hours 100,000 hours   Wavelength Red: 660nm Orange: 612nm Blue: 460nm   mcd Red: 10000mcd Orange: 10000mcd Blue: 10000mcd   Configuration series and parallel configuration

Why LEDs?

The LED Grow Light is convenient to use. They are ideal for replacing incandescent or halogen light bulbs. The LED light bulbs have a super long life that last for 100,000 hours. That would be more than 12 years of continuous operation. Since LED is in a solid state (no filament) it is almost indestructible (not if you intended to destroy it). LEDs are about 10 times the efficiency of a typical flashlight bulb, so you get more light and you can cut down your electric bill at the same time.

High Efficiency
The wavelengths of some LED are compatible with the absorption peak of the pigments involved in photosynthesis and photomorphogenesis. Only necessary light for those physiological functions can be irradiated.

Low Thermal Irradiation
LED in the visible light area contain little heat rays, allowing for short-distance irradiation.

Reduced Energy Consumption and Long Life
LED substantially reduce power consumption. Depending on the operating environment, an LED can provide thousands of hours of light.


Life Of LED
Since an LED emits light through a semiconductor device, its life is many times longer than that of other light sources (however, it can be affected by the operating environment).



Spectral Distribution Comparison

LED is developed to emit a specific color efficiently by adjusting the materials used in the semiconductor compounds. The wavelength of an LED is relatively fixed, but not as much as that of a laser beam. Another distinction, LED in the visible range contain little heat rays. Therefore, they radiate almost no heat in the direction of emission. Below are comparison of LED and other lamps' spectral Distribution:

Photosynthesis

lighting energy is used in an important photoreaction, the synthesis of carbon dioxide and water into organic compounds. The pigments called chlorophyll play a role in this reaction by absorbing light.

Choose the right color for your plants
- Blue light stimulate stem and leaf growth
- Red light stimulate flowering and seed production
- Green and Yellow light are not as useful

Carotenoid Synthesis

Carotenoids are required for plants to stay healthy. They have the ability to absorb destructive free radicals from solar damage and chlorophyll production. With the presence of carotenoid, plants will be able to produce more chlorophyll which will result the plant having a deeper green. Carotenoid has an absorption peak of 612nm (Orange light), in addition for maintaining the plants health, they will also help in photosynthesis because the energy they absorbed will be passed to chlorophyll.
