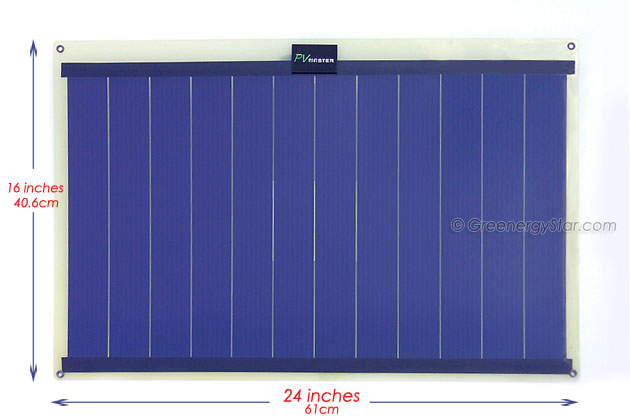

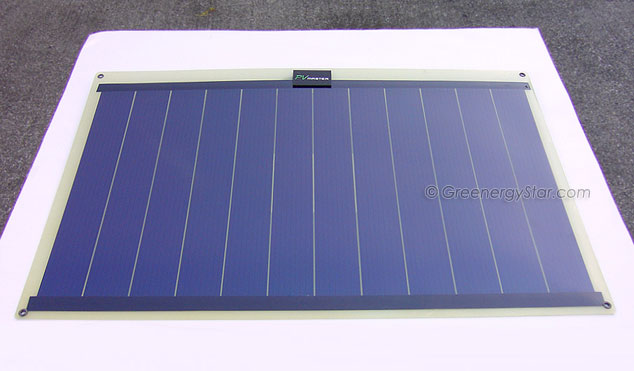

12W Flexible Solar Power Panel

Solar Panel Specification:

Output 12W   Type Triple-junction Solar cells   Voc 20V   Vop 16.8V   Short Circuit Current (Isc) 960mA   Working Currrent (Iop) 720mA   Operating Temperature -30'C to 80'C   Frame Fibre Glass   Connection 1.5mm male plug   Cable 1.7m   Battery Voltage 12V   Dimension 61 x 40.6 x 0.15cm   Weight 856g

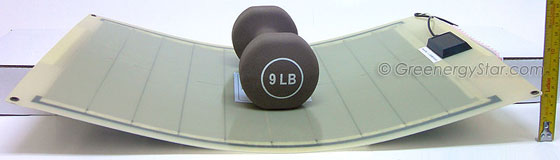

Sample picture, Dumbbell and Measuring Tape not included

PV Master has released a range of light weight, flexible thin film solar panels to the market. These solar panels utilize triple-junction solar cells which have excellent high-temperature performance and low-light power outputs.

Each cell is composed of three semiconductor junctions stacked on top of each other, forming three different sub-cells. The bottom sub-cell absorbs red light, the middle cell absorbs yellow/green light and the top cell absorbs blue light.

The cells are laminated in flexible weather-resistant polymers. These thin film modules can be used in the field standalone or attached to a backpack for charging cellphones, iPods, repeater stations or any other portable equipment including sailing boats, green houses, cars, radios, recreational vehicles, portable televisions, warning lights, flash lights, garden lights, house light, garage lights and ventilators for rooms and cars. They can also be installed into a grid-tie system.

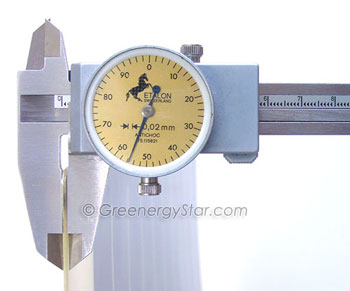

1.56mm thickness

- Utilize Triple Junction Solar technology
- Flexible, can be bent over 90 degrees
- Ultra light, 10% the weight of Amorphous Panels or 1/2 of Polycrystalline Panels
- Laminated in flexible weather-resistant polymers
- Rain proof and corrosive proof
- Weather resistant

NO OPERATING COST
GENERATES ELECTRICITY FROM THE ABUNDANT RESOURCE
