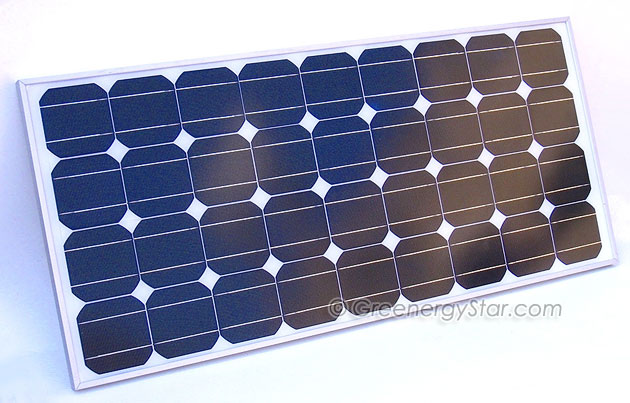

110W Monocrystalline Solar Power Panel

Solar Panel Specification:

Output 110W   Type Monocrystalline   Open Circuit Voltage (Voc) 21.5V   Maximum Power Voltage (Vmp) 18.4V   Short Circuit Current (Isc) 6.86A   Maximum Power Currrent (Imp) 5.98A   Output Tolerance +/-5% (104.5W - 115.5W)   Operating Temperature -40°C to 80°C   Frame Aluminum Alloy   Efficiency 16.86%   Connection Quick Connector   Cable Install to box (90cm)   Number of Cells 36 cells   Glass Tempered Glass   Battery Voltage 12V   Dimension 120.5 x 55 x 3.5cm 47.4 x 21.7 x 1.4 inches   Weight 18.4kg, 40.5lbs

Back of Panel with Box and cable


Solar panel generates free energy for many general household appliance. These solar panels also specially designed for use in sailing boats, green houses, cars, radios, recreational vehicles, portable televisions, warning lights, flash lights, garden lights, house light, garage lights and ventilators for rooms and cars. They can also be installed into a grid-tie system.

- 36 pieces silicon solar cells
- Enclosed with epoxy and high-quality resin material
- Rain proof, rust proof and corrosive proof, protects against wind, rain, salt air and solar radiation.
- Weather resistant, charge batteries in dry/wet condition

Comparison Chart:

Monocrystalline Silicon Panels
	Pros	Cons
	15-18% (high) efficiency	More Expensive
	Small Panel Size	Non Rectangular shaped cells
	Light Weighted (Easy to install)

Polycrystalline Silicon Panels Amorphous Silicon               Pros Cons   Pros Cons   Efficiency can be compensated by better utilization of the area available for modules. 12-14% efficiency (Medium)   Most economical 6 - 8% efficiency (Low)   Most Cost effective     Thin Film Panel size is huge because of low efficiency   Small Panel Size       Heavy weighted (Hard to install)   Light Weighted (Easy to install)           Rectangular shaped cells

NO OPERATING COST
GENERATES ELECTRICITY FROM THE ABUNDANT RESOURCE
