10 inches Stainless Steel Nose Cone + Steel Hub For Wind Turbine Generator Air-X 403, 303

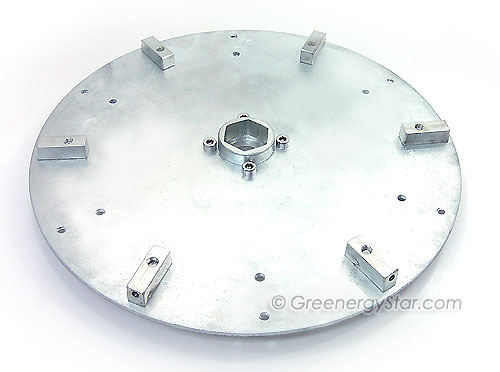

Hub Specification:

Material Steel   Diameter 258 mm (10.125")   Capacity 6 Blades   Compatibility Air-X 403, 303 Car alternators, AMETEK, Tape drive, Stepping, 90 VDC motors   Inner Diameter 17mm   Mounting 23mm Hex Adapter   Adapter Thickness 33mm   Disc Thickness 3mm

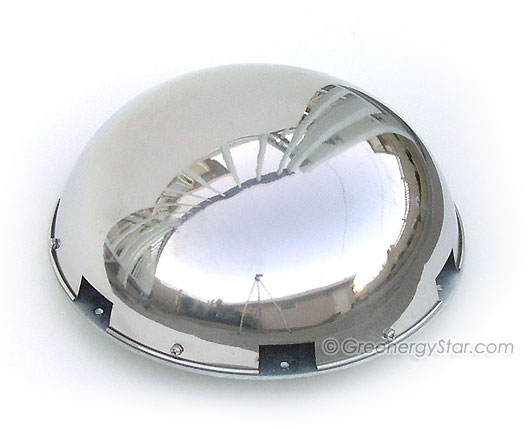

Nose Cone Specification:

Material Stainless Steel   Diameter 258 mm (10.16")   Height 90 mm (3.54")   Mounting 6 screws   Thickness 0.4mm

Included:

- 1x Nose Cone
- 1x Hub
- 6x Screws
- 6x Ring Locks

For Air-X 403, 303 (Air-X generator is not incluced)


Performance Comparison:

With Nose Cone - Smooth Performance Without Nose Cone - Air current spins into tiny vortexes

Features:
- Reduce wind resistance
- Eliminates vortexes
- Greater stability
- Increase swept area with 10"diameter
- 33mm adapter ensures quiet performance and zero vibration
- Precisely machined, wobble-free
- 17mm hub centers fits on most car alternators, Air-X, tape drive, stepping, 90VDC motors
- Slight metal work required for 5/8" shafts
- Built in 23mm Hex Adapter, first in the market aside from Air-X
- Automatically secure hub onto turbine (Hex nut not included)
- Direct fit to Air-X 403, 303 wind turbines
- Excellent for PMA's Permanent Magnet Alternators
- Replace / Upgrade your Hub and nose cone

WARNING !!!

SHARP Edges, Handle with Care!
The installer of the hub and nose cone is solely responsible for the use or misuse of the products. We assume no liability for ANY injuries caused by these products.

NO OPERATING COST
GENERATES ELECTRICITY FROM THE ABUNDANT RESOURCE
