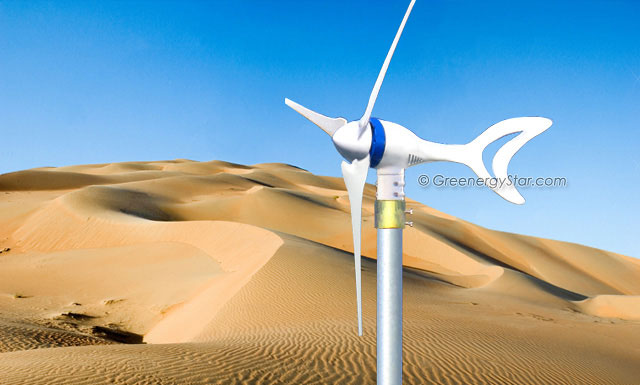

MegaShark Max 650W 24V DC Wind Turbine Generator for Land or Marine Use

Introducing the MegaShark. A turbine that can use on land, or marine environment. With its aircraft quality aluminum alloy body and anodized hub, you wont have to worry installing it on a boat. This turbine utilize Neodymium (permanent) magnets in its alternator rotor and has a built in rectifier and body heatsink to allow large amount of current to pass through.

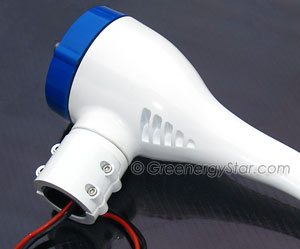

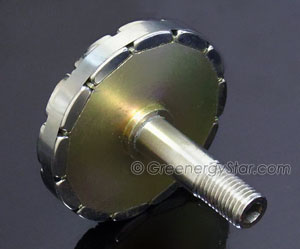

Built in Heat Sink	Neodynium Magenet Rotor

Connection Overview:
The Wind Generator will generate power from the alternator and from there produce DC electricity with the built in rectifier. It is able to charge 24V batteries directly. (Note: 24V Batteries are not included.)

If your home or farm is connected to the power grid, on windier days you may be able to sell excess power generated by your wind turbine to your utility. At other times when the turbine cannot generate all the power you need, you would buy power from the grid. This concept is called net metering.

Even if net metering is unavailable, you might be able to reduce your power bills by using the electricity generated by wind turbines, and become less dependent on your utility.

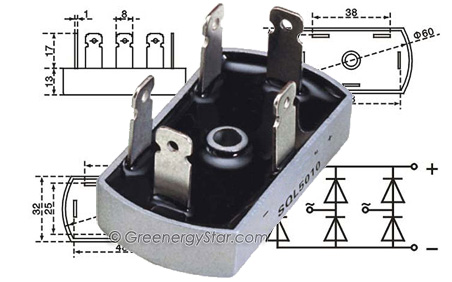

Built-in Rectifier

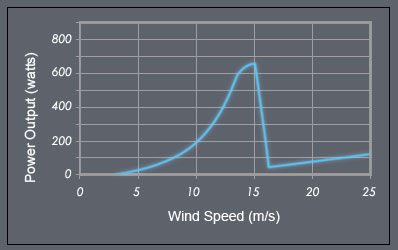

Power curve: Performance curve of power output versus wind speed



Since wind speed increases with height, increases to the tower height can mean enormous increases in the amount of electricity generated by a wind turbine.


Generator Specification:

Certification: CE, RoHS and ISO 9001:2000

? Body Material Aluminium ? Rotor Diameter 117cm (46 inches) ? Starting Wind Speed 3m/s (7 mph) ? Rated Wind Speed 13m/s ? Survival Wind Speed 45m/s ? Voltage 24 VDC ? Rated Power 500W ? Maximum Power 650W ? Weight 5kg ? Mount Not included

Blade Specification:

? Material Carbon Fiber ? Length 58cm (23 inches) ? Width (base) 12cm (4.5 inches ) ? Weight (per blade) 210g Features: - Incorporates highly efficient, true airfoil - Manufactured using a precision injection molding process that produces blades of exceptional consistency

Nose Cone Specification:

? Material Plastic ? Diameter 135 mm ? Height 90mm ? Mounting Locks on Hub ? Thickness 3mm ? Weight 80g Features: - Reduce wind resistance - Eliminates vortexes - Greater stability - Neighbor Friendly

Performance Comparison:

With Nose Cone - Smooth Performance Without Nose Cone - Air current spins into tiny vortexes

WARNING !!!

Rotating blades present the most serious mechanical hazard. The blades may be moving at velocities over 275 miles per hour (440 km/hr). At this speed, the tip of a blade is nearly invisible and can cause serious injury. Under no circumstances should you install the turbine where a
person could come in contact with moving rotor blades.

The installer of these blades is solely responsible for the use or misuse of these blades. We assume no liability for ANY injuries caused by these products.
