750W 12V Wind Turbine Generator System + Wind & Solar Hybrid Charge Controller

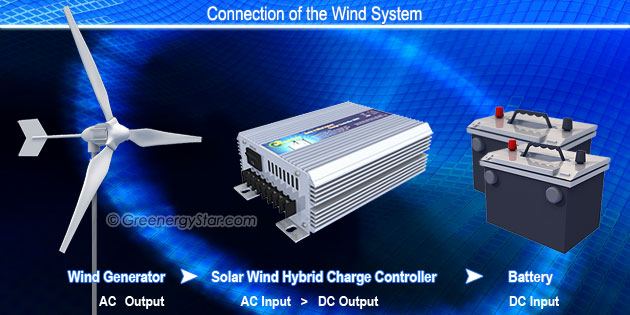

Connection Overview:

The Wind Generator is connected to the Solar Wind Hybrid Charge Controller, which changes the Alternative Current output by the generator to Direct Current (AC to DC). Electricity generated by the wind turbine are then stored to batteries. Note: the 12V Batteries above are not included.

If your home or farm is connected to the power grid, on windier days you may be able to sell excess power generated by your wind turbine to your utility. At other times when the turbine cannot generate all the power you need, you would buy power from the grid. This concept is called net metering.

Even if net metering is unavailable, you might be able to reduce your power bills by using the electricity generated by wind turbines, and become less dependent on your utility.

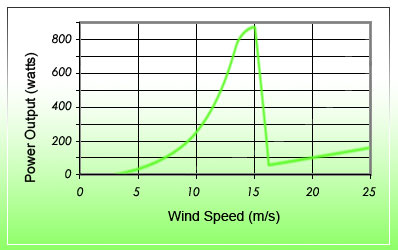

Power curve: Performance curve of power output versus wind speed

Since wind speed increases with height, increases to the tower height can mean enormous increases in the amount of electricity generated by a wind turbine.

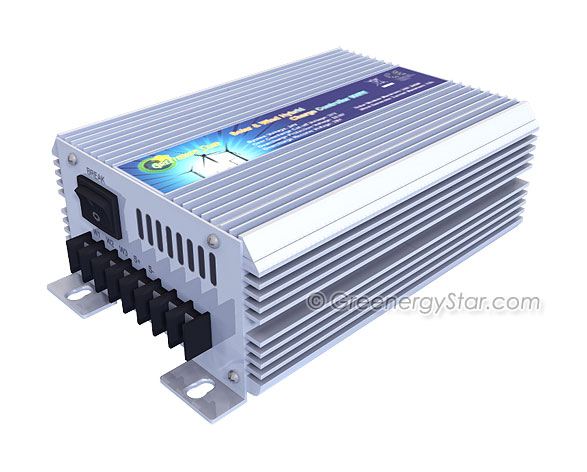

Charge Controller Specification:

Input Voltage 12V   Maximum Solar Input Power 200W   Maximum Wind Input Power 900W   Charging Cut off Voltage 14.4V +/- 0.2V for 12V battery   Overdischarge Resume Voltage 13V   Protection time 30 minutes   Operating Temperature 20~50°C   Dimension 21.1 x 14.0 x 7.3 cm Features: - LED Display: Battery Charge State, Solar / Wind input, Dump load - Keeps battery in an optimum charged state - Prevents overcharge or overdischarge - High Wind Safe Mode - Automatically slows turbine in potentially damaging winds and reduces noise - Automatic dumpload will activate when overloaded - Internal diode to prevent reverse current to solar panels or wind turbine - Solar Panel reverse polarity protection - Manual Braking switch that isolate the wind turbine from the system. Allows maintenance and system modifications to be safely made to the turbine.

Generator Specification:

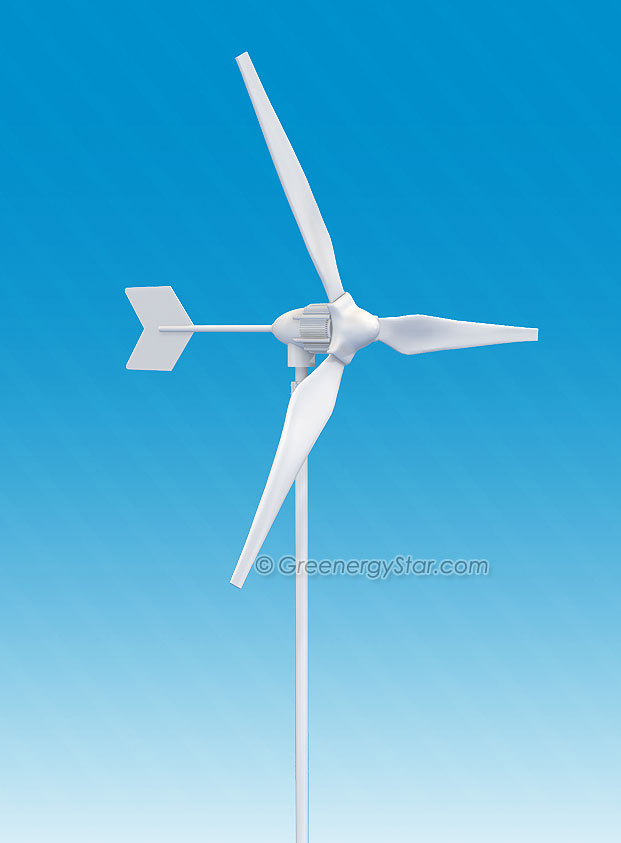

Body Material Steel   Rotor Diameter 176cm (69.3 inches)   Starting Wind Speed 3m/s (7 mph)   Rated Wind Speed 13m/s   Survival Wind Speed 45m/s   Voltage 12 VDC   Rated Power 750W   Maximum Power 900W   Overspeed protection Electromagnetic Torque Control   Mount Not included

Blade Specification:

Material Light Composite Material   Length 86.5cm (34 inches)   Width (base) 15cm (5.9 inches )   Weight (per blade) 482g Features: - Incorporates highly efficient, true airfoil - Quiet performance with minimal vibration - Manufactured using a precision injection molding process that produces blades of exceptional consistency

Hub / Nose Cone Specification:

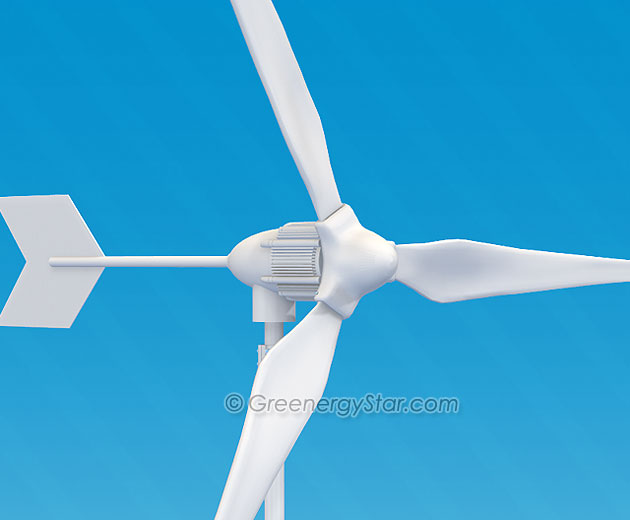

Material Steel / Plastic   Diameter 210 mm   Height 140mm   Mounting Screws   Thickness 2mm   Weight 4.4lbs (2kg) Features: - Reduce wind resistance - Eliminates vortexes - Greater stability - Neighbor Friendly

Performance Comparison:

With Nose Cone - Smooth Performance Without Nose Cone - Air current spins into tiny vortexes

WARNING !!!

Rotating blades present the most serious mechanical hazard. The blades may be moving at velocities over 275 miles per hour (440 km/hr). At this speed, the tip of a blade is nearly invisible and can cause serious injury. Under no circumstances should you install the turbine where a
person could come in contact with moving rotor blades.

The installer of these blades is solely responsible for the use or misuse of these blades. We assume no liability for ANY injuries caused by these products.
